806-22-001-10-003191

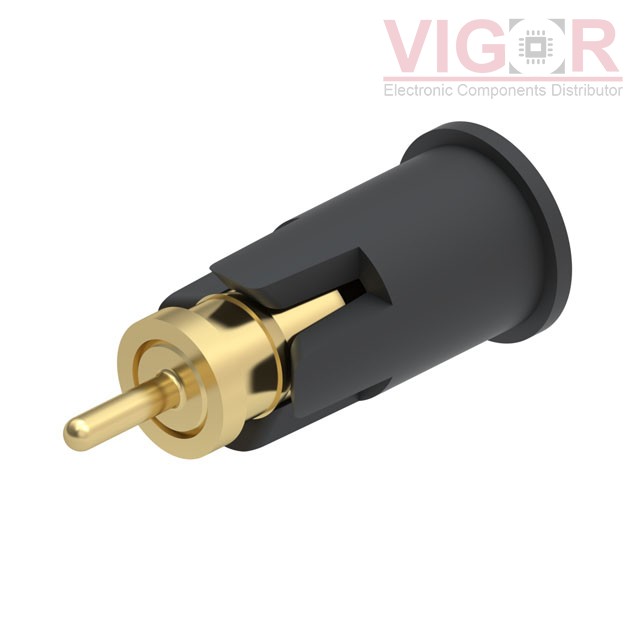

Image is for reference,
please contact us to get the real picture

Part No :: 806-22-001-10-003191

Manufacturer: Mill-Max

Description: CONTACT SPRING LOADED T/H GOLD

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 806-22-001-10-003191 PDF

Availability: 1667 pieces

Unit Price: ~~$1.04000~~

Current price of 806-22-001-10-003191 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

806-22-001-10-003191 Specifications

Type	Description
Series:	806
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Through Hole
Maximum Working Height:	0.177" (4.50mm)
Recommended Working Height:	0.150" (3.80mm)
Minimum Working Height:	-
Pad Layout Dimension:	Circular - 0.072" (1.83mm) (TH)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	60gf
Plunger Size:	0.042" (1.07mm) Dia
Features:	Pick and Place
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)
