7973-0-15-20-77-14-11-0

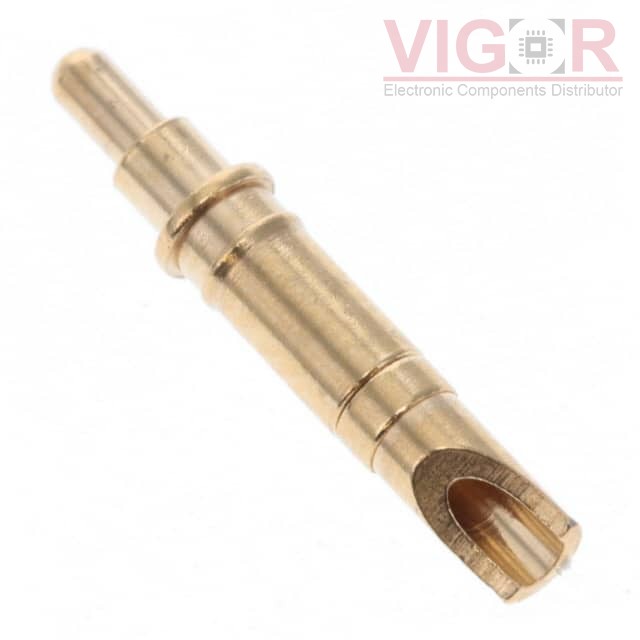

Image is for reference,
please contact us to get the real picture

Part No :: 7973-0-15-20-77-14-11-0

Manufacturer: Mill-Max

Description: STANDARD SPRING-LOADED PIN

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 7973-0-15-20-77-14-11-0 PDF

Availability: 6778 pieces

Unit Price: ~~$0.98000~~

Current price of 7973-0-15-20-77-14-11-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7973-0-15-20-77-14-11-0 Specifications

Type	Description
Series:	7973
Package:	Bulk
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Through Hole, Solder Cup
Maximum Working Height:	0.145" (3.68mm)
Recommended Working Height:	0.105" (2.66mm)
Minimum Working Height:	0.065" (1.65mm)
Pad Layout Dimension:	Circular - 0.085" (2.16mm) (TH)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	60gf
Plunger Size:	0.042" (1.07mm) Dia
Features:	22 AWG
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
