807-22-001-30-013101

807-22-001-30-013101

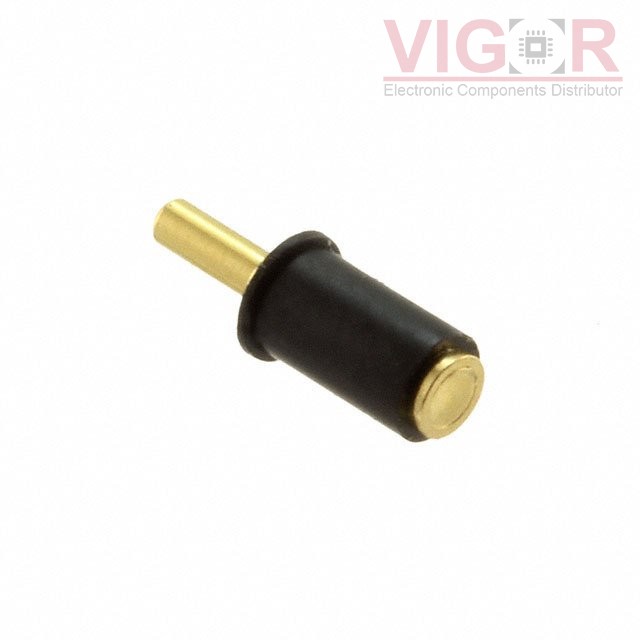

Image is for reference,
please contact us to get the real picture

Part No :

807-22-001-30-013101

Manufacturer
Mill-Max
Description
CONTACT SPRING LOADED SMD GOLD
Catalog
Contacts, Spring Loaded (Pogo Pins), and Pressure
Shipped from
HK warehouse
Expected Shipping Date
Nov 13 - Nov 17 2025
DataSheet
807-22-001-30-013101 PDF
Availability
340 pieces
Unit Price
$0.81000

Current price of 807-22-001-30-013101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

807-22-001-30-013101 Specifications
Type Description
Series:807
Package:Bulk
Part Status:Active
Contact Type:Sleeve & Plunger (Pogo Pins)
Mounting Type:Surface Mount
Maximum Working Height:0.315" (8.00mm)
Recommended Working Height:0.287" (7.30mm)
Minimum Working Height:-
Pad Layout Dimension:Circular - 0.082" (2.08mm)
Operating Force - Initial:25gf
Operating Force - Mid Compression:60gf
Plunger Size:0.042" (1.07mm) Dia
Features:Pick and Place
Mating Cycles:1000000
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:20.0µin (0.51µm)
