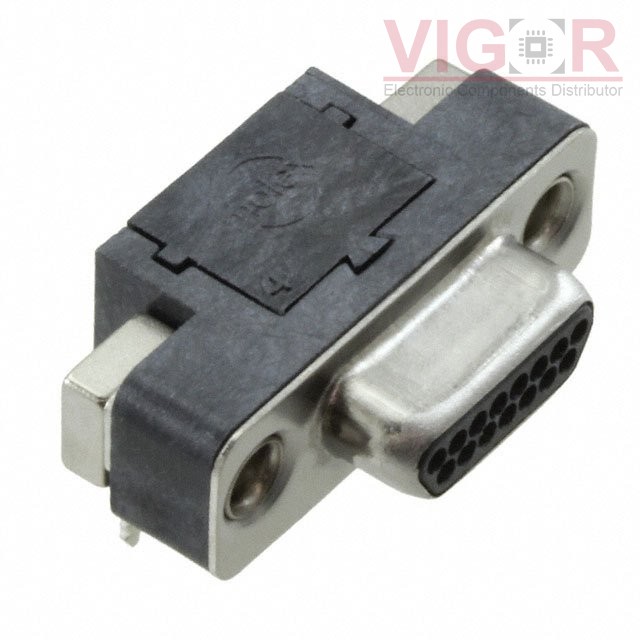

0836129022

Part No :: 0836129022

Manufacturer: Woodhead - Molex

VIGOR # :: 3329584

Description: CONN MICRO-D PLUG 15POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 0836129022 PDF

Country of origin: -

Date code: -

0836129022 Specifications

Type	Description
Series:	Commercial Micro-D Series 83612
Package:	Tube
Part Status:	Active
Connector Style:	D-Type, Micro-D
Connector Type:	Plug, Male Pins
Number of Positions:	15
Number of Rows:	2
Mounting Type:	Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout:	0.050 Pitch x 0.050 Row to Row
Contact Type:	Signal
Flange Feature:	Housing/Shell (2-56)
Termination:	Solder
Shell Material, Finish:	Steel, Nickel Plated
Contact Finish:	Gold
Contact Finish Thickness:	15.0µin (0.38µm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	1A
Backset Spacing:	-
Features:	Board Lock, Shielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 81

Shipped from

HK warehouse

Expected Shipping Date

Jan 12 - Jan 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.80~~	~~$12.80~~
10	~~$11.64~~	~~$116.40~~
25	~~$11.35~~	~~$283.73~~
50	~~$10.48~~	~~$523.80~~
132	~~$9.89~~	~~$1 306.01~~
264	~~$9.02~~	~~$2 381.54~~
528	~~$8.44~~	~~$4 455.79~~
1056	~~$7.74~~	~~$8 174.07~~

Current price of 0836129022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
