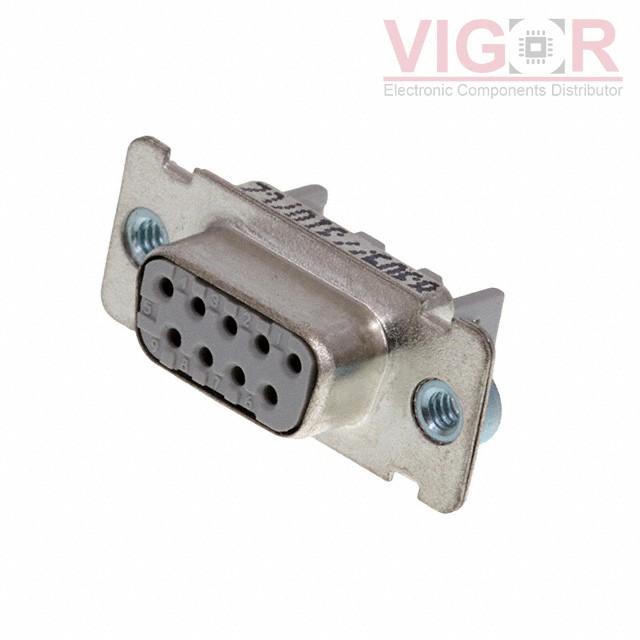

8309-7003

Part No :: 8309-7003

Manufacturer: 3M

VIGOR # :: 3330208

Description: CONN D-SUB RCPT 9POS PNL MNT IDC

Catalog: D-Sub Connectors

DataSheet: 8309-7003 PDF

Current price of 8309-7003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

8309-7003 Specifications

Type	Description
Series:	8300
Package:	Bulk
Part Status:	Active
Connector Style:	D-Sub
Connector Type:	Receptacle, Female Sockets
Number of Positions:	9
Number of Rows:	2
Mounting Type:	Panel Mount
Shell Size, Connector Layout:	1 (DE, E)
Contact Type:	Signal
Flange Feature:	Housing/Shell (4-40)
Termination:	IDC, Ribbon Cable
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	1A
Backset Spacing:	-
Features:	-

Please confirm the specifications of the products when ordering.
