L717SDE09PA4CH4F

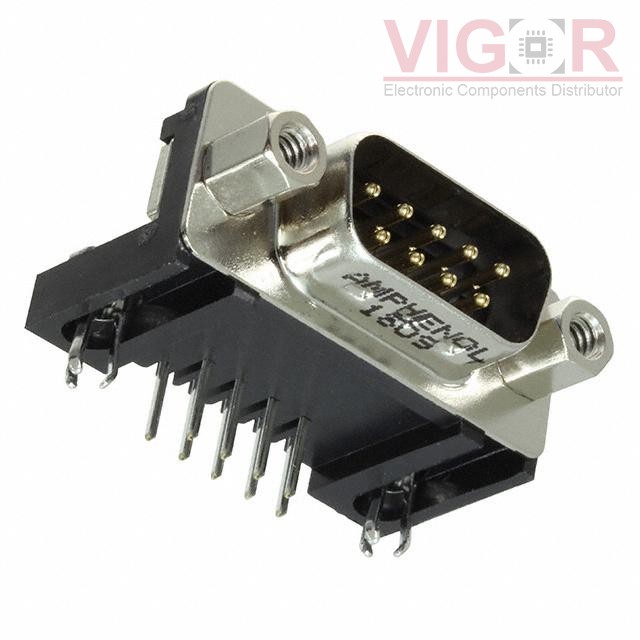

Product image
Product thumb
Part No :

L717SDE09PA4CH4F

Manufacturer
Storage & Server IO (Amphenol ICC)
VIGOR # :

3334047

Description
CONN D-SUB PLUG 9POS R/A SLDR
Catalog
D-Sub Connectors
DataSheet
L717SDE09PA4CH4F PDF
Country of origin
-
Date code
-
ads
L717SDE09PA4CH4F Specifications
Type Description
Series:SD
Package:Tray
Part Status:Active
Connector Style:D-Sub
Connector Type:Plug, Male Pins
Number of Positions:9
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:1 (DE, E)
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Steel, Tin Plated
Contact Finish:Gold
Contact Finish Thickness:Flash
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):5A
Backset Spacing:0.318" (8.08mm)
Features:Board Lock, Grounding Indents
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 85
Shipped from
HK warehouse
Expected Shipping Date
Jan 02 - Jan 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.75 $1.75
10 $1.59 $15.86
25 $1.49 $37.21
90 $1.42 $128.10
180 $1.36 $244.56
270 $1.23 $331.89
540 $1.13 $611.39
1080 $0.97 $1 048.09
2520 $0.91 $2 282.52

Current price of L717SDE09PA4CH4F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
