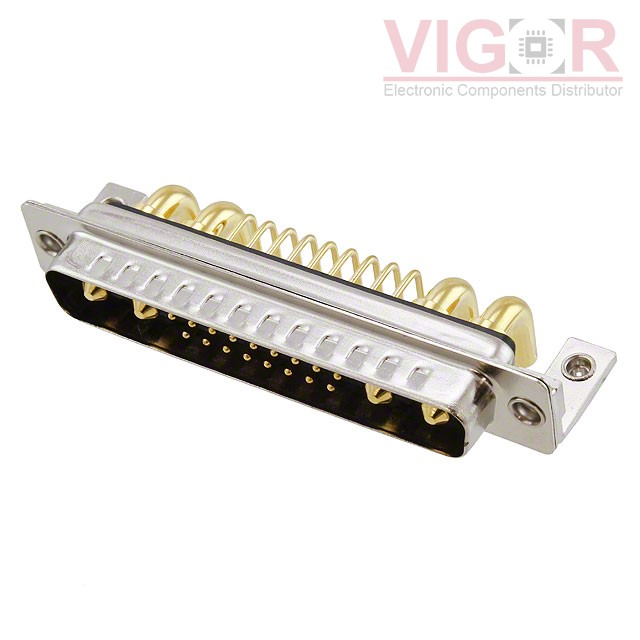

684S21WA4PL461

Part No :: 684S21WA4PL461

Manufacturer: NorComp

VIGOR # :: 3334688

Description: CONN D-SUB PLUG 21POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 684S21WA4PL461 PDF

Country of origin: -

Date code: -

684S21WA4PL461 Specifications

Type	Description
Series:	Seal-D 684S
Package:	Tray
Part Status:	Active
Connector Style:	D-Sub, Combo
Connector Type:	Plug, Male Pins
Number of Positions:	21 (17 + 4 Power)
Number of Rows:	2
Mounting Type:	Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout:	4 (DC, C) - 21WA4
Contact Type:	Signal and Power
Flange Feature:	Housing/Shell (4-40)
Termination:	Solder
Shell Material, Finish:	Steel, Nickel Plated
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	5A, 40A
Backset Spacing:	0.402" (10.21mm)
Features:	Board Lock, Grounding Indents, Mounting Brackets

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 05 - Jan 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$17.49~~	~~$17.49~~
40	~~$17.34~~	~~$693.70~~

Current price of 684S21WA4PL461 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

DD104S32S0T0

CONN D-SUB HD RCPT 104P VERT SLD

180-M62-113R911

CONN D-SUB HD PLUG 62POS PNL MNT

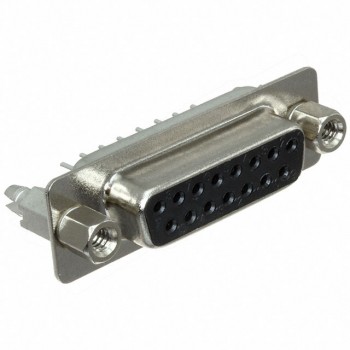

2301840-1
