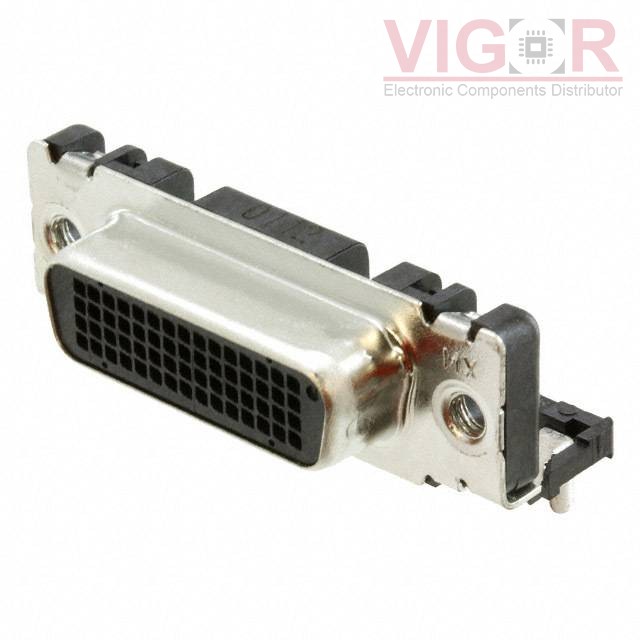

0709282002

Part No :: 0709282002

Manufacturer: Woodhead - Molex

VIGOR # :: 4717604

Description: CONN D-TYPE RCPT 60POS R/A SLDR

Catalog: D-Sub Connectors

DataSheet: 0709282002 PDF

Country of origin: -

Date code: -

0709282002 Specifications

Type	Description
Series:	Low Force Helix (LFH) 70928
Package:	Tube
Part Status:	Obsolete
Connector Style:	D-Type, Board to Board, Matrix
Connector Type:	Receptacle, Female Sockets
Number of Positions:	60
Number of Rows:	4
Mounting Type:	Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout:	0.050 Pitch x 0.050 Row to Row
Contact Type:	Signal
Flange Feature:	Housing/Shell (M3)
Termination:	Solder
Shell Material, Finish:	Steel, Tin Plated
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Current Rating (Amps):	1A
Backset Spacing:	-
Features:	Board Lock, Shielded
