07FMN-SMT-A-TF(LF)(SN)

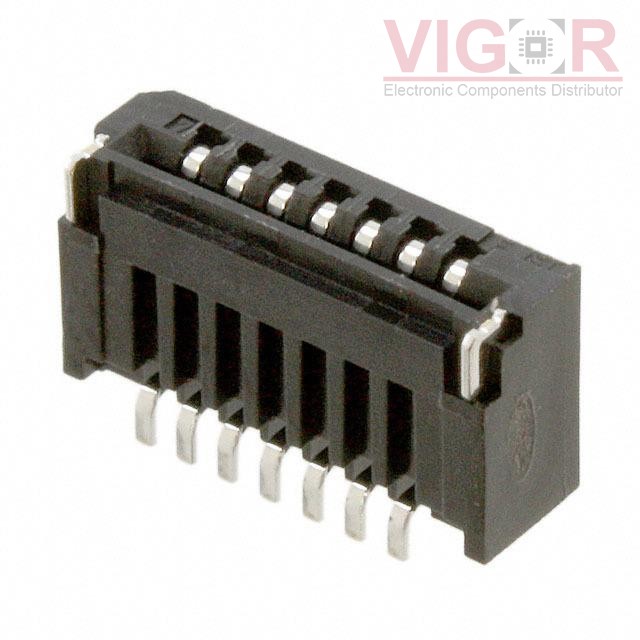

Image is for reference,
please contact us to get the real picture

Part No :: 07FMN-SMT-A-TF(LF)(SN)

Manufacturer: JST

Description: CONN FFC TOP 7POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 07FMN-SMT-A-TF(LF)(SN) PDF

Availability: 2076 pieces

Unit Price: ~~$0.52000~~

Current price of 07FMN-SMT-A-TF(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

07FMN-SMT-A-TF(LF)(SN) Specifications

Type	Description
Series:	FMN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	7
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.118" (3.00mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyamide (PA6T), Nylon 6T
Actuator Material:	-
Features:	Low Insertion Force (LIF)
Voltage Rating:	50V
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0
