686104148922

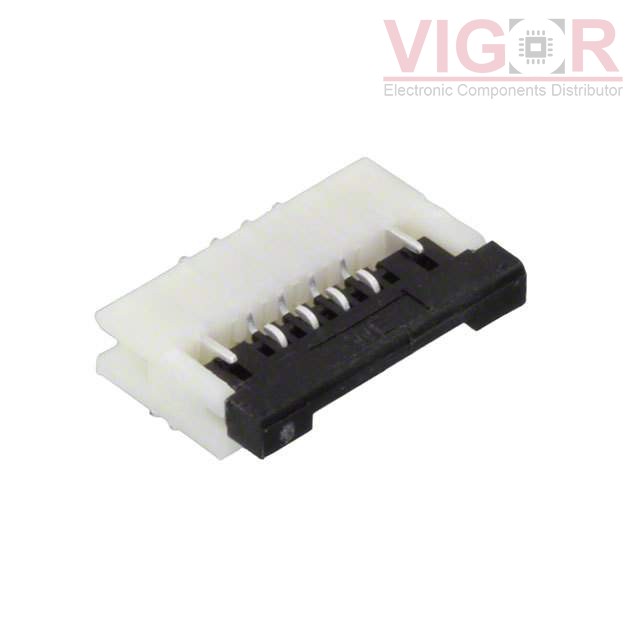

Image is for reference,
please contact us to get the real picture

Part No :: 686104148922

Manufacturer: Würth Elektronik Midcom

Description: CONN 1MM HORZ BOTTOM SMD 4POS

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 686104148922 PDF

Availability: 849 pieces

Unit Price: ~~$0.83000~~

Current price of 686104148922 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

686104148922 Specifications

Type	Description
Series:	WR-FPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	4
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.087" (2.20mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyamide (PA6T), Nylon 6T
Actuator Material:	Polyamide (PA6T), Nylon 6T
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	100V
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
