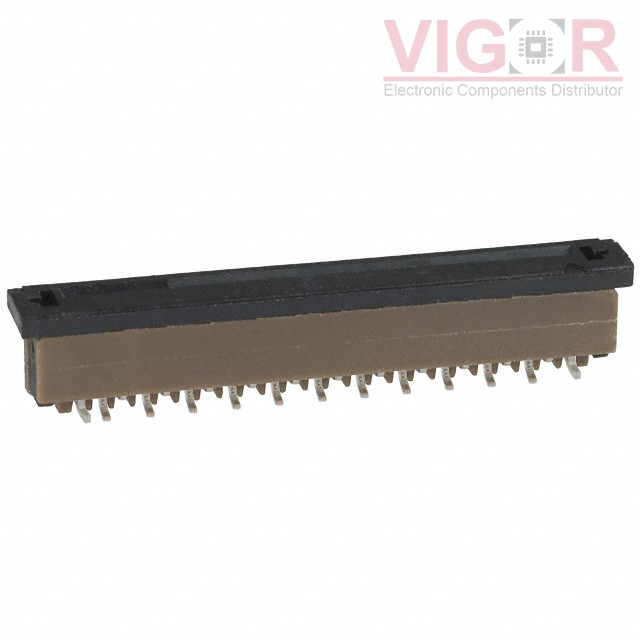

SFW22S-2STME1LF

Part No :: SFW22S-2STME1LF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3261642

Description: CONN FFC FPC VERT 22POS 1MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: SFW22S-2STME1LF PDF

Country of origin: -

Date code: -

SFW22S-2STME1LF Specifications

Type	Description
Series:	SFW
Package:	Tape & Reel (TR)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	22
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm, 0.33mm
Height Above Board:	0.209" (5.30mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Thermoplastic, Glass Filled
Actuator Material:	Thermoplastic, Glass Filled
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	100V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 08 - Jan 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.40~~	~~$0.40~~
2000	~~$0.40~~	~~$794.56~~

Current price of SFW22S-2STME1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
