FH12-11S-1SH(1)(98)

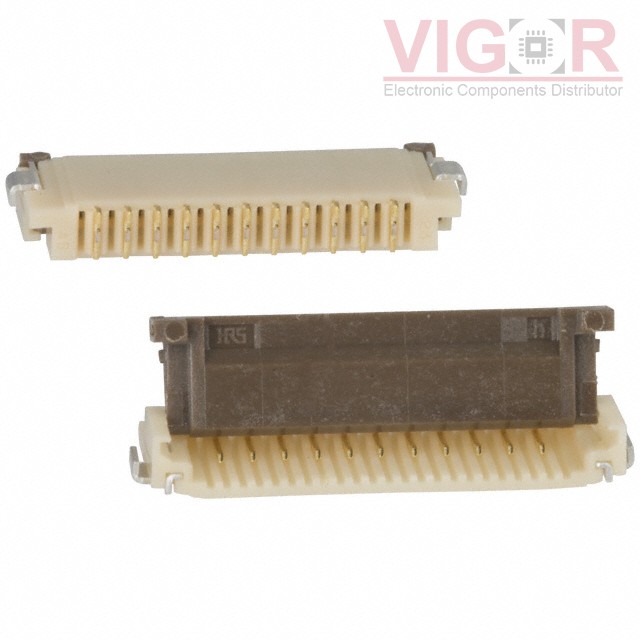

Image is for reference,
please contact us to get the real picture

Part No :: FH12-11S-1SH(1)(98)

Manufacturer: Hirose

Description: CONN FFC BOTTOM 11POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH12-11S-1SH(1)(98) PDF

Availability: 0 pieces

Unit Price: ~~$1.34750~~

Current price of FH12-11S-1SH(1)(98) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH12-11S-1SH(1)(98) Specifications

Type	Description
Series:	FH12
Package:	Tape & Reel (TR)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	11
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Polyamide (PA), Nylon
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
