5034803200

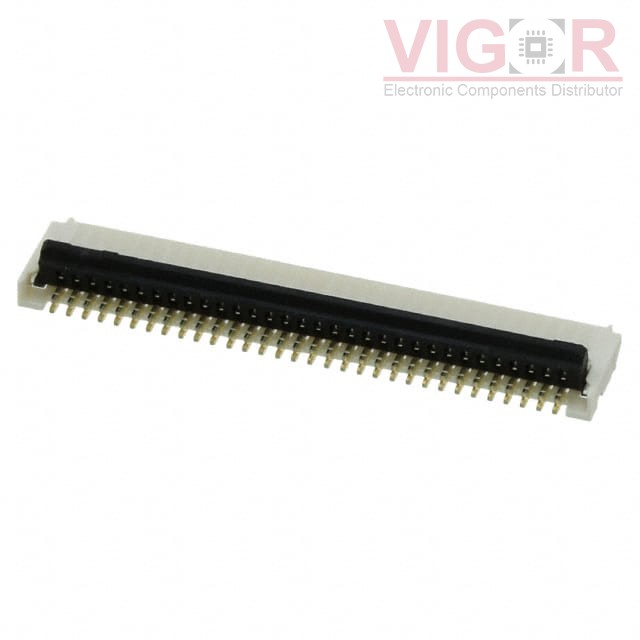

Image is for reference,
please contact us to get the real picture

Part No :: 5034803200

Manufacturer: Woodhead - Molex

Description: CONN FFC FPC 32POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 5034803200 PDF

Availability: 11231 pieces

Unit Price: ~~$2.02000~~

Current price of 5034803200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5034803200 Specifications

Type	Description
Series:	BackFlip, Easy-On 503480 FHB1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	32
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0, UL94 HB
