FH23-39S-0.3SHW(10)

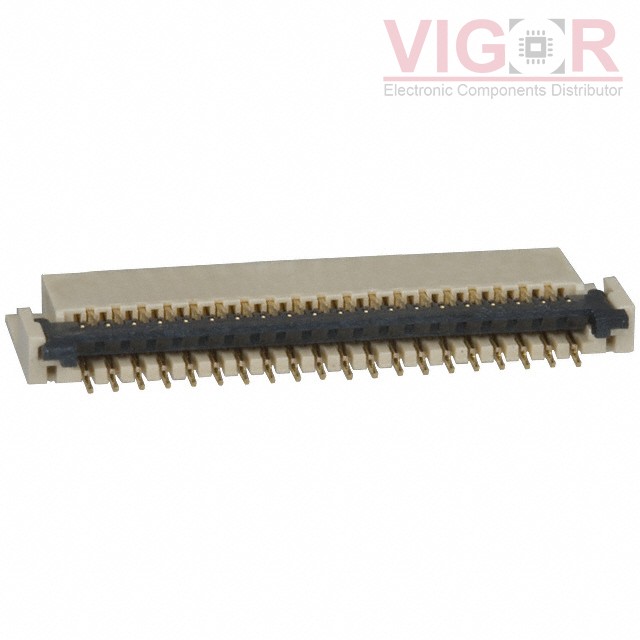

Image is for reference,
please contact us to get the real picture

Part No :: FH23-39S-0.3SHW(10)

Manufacturer: Hirose

Description: CONN FPC BOTTOM 39POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH23-39S-0.3SHW(10) PDF

Availability: 0 pieces

Unit Price: ~~$1.26000~~

Current price of FH23-39S-0.3SHW(10) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH23-39S-0.3SHW(10) Specifications

Type	Description
Series:	FH23
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	39
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.049" (1.25mm)
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Low Insertion Force (LIF)
Voltage Rating:	30V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
