ZF5S-30-01-T-WT-TR

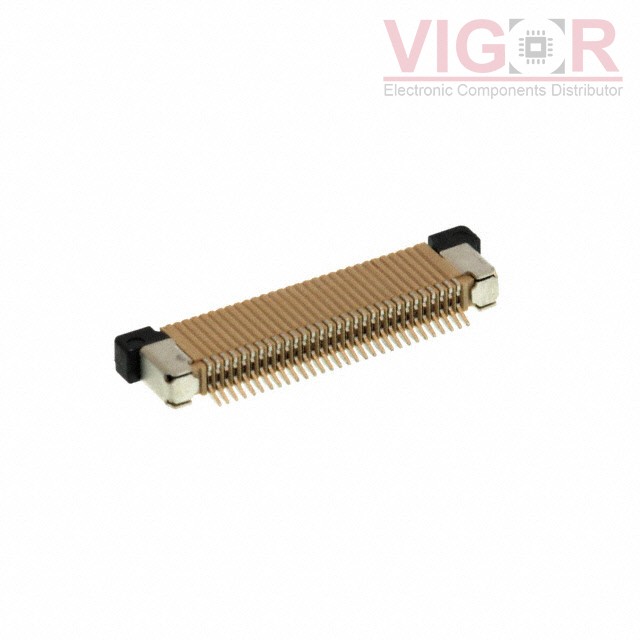

Image is for reference,
please contact us to get the real picture

Part No :: ZF5S-30-01-T-WT-TR

Manufacturer: Samtec, Inc.

Description: ZERO INSERTION FORCE .5MM ASSEMB

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: ZF5S-30-01-T-WT-TR PDF

Availability: 1303 pieces

Unit Price: ~~$2.31000~~

Current price of ZF5S-30-01-T-WT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZF5S-30-01-T-WT-TR Specifications

Type	Description
Series:	ZF5S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	30
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.083" (2.10mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	-
