0528061610

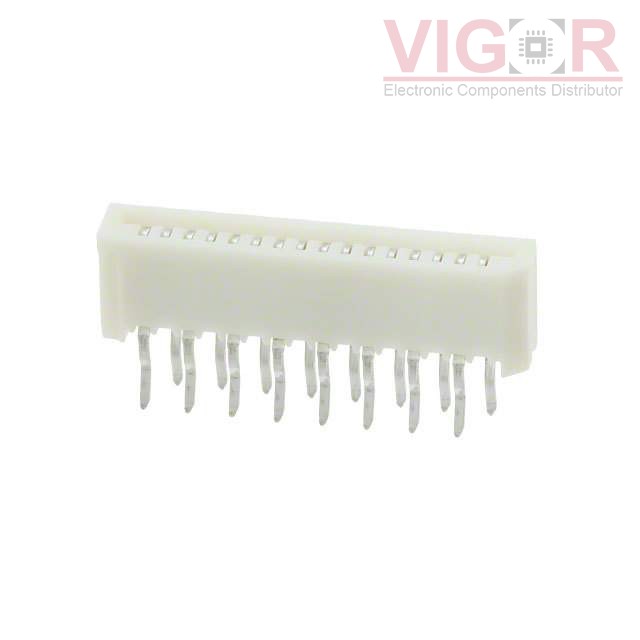

Image is for reference,
please contact us to get the real picture

Part No :: 0528061610

Manufacturer: Woodhead - Molex

Description: CONN FPC VERT 16POS 1.00MM PCB

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0528061610 PDF

Availability: 16295 pieces

Unit Price: ~~$0.45000~~

Current price of 0528061610 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0528061610 Specifications

Type	Description
Series:	52806
Package:	Tray
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Through Hole
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	16
Pitch:	0.039" (1.00mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.213" (5.40mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyphenylene Sulfide (PPS)
Actuator Material:	-
Features:	-
Voltage Rating:	50V
Operating Temperature:	-20°C ~ 80°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 16295

Shipped from

HK warehouse

Expected Shipping Date

Nov 16 - Nov 20 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$0.45000	$0.45
10	$0.42852	$4.2852
25	$0.36777	$9.19425
50	$0.31255	$15.6275
100	$0.30027	$30.027
250	$0.26963	$67.4075
500	$0.25736	$128.68
1500	$0.20344	$305.16
3000	$0.19609	$588.27
