FH12-15S-0.5SVA(54)

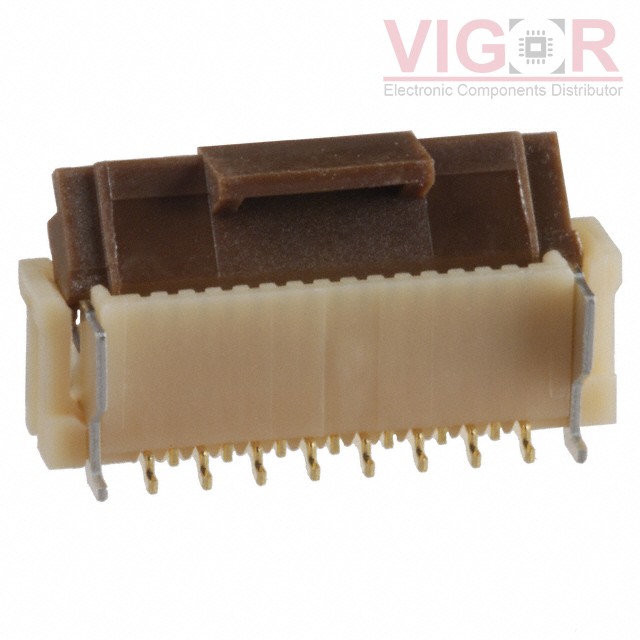

Image is for reference,
please contact us to get the real picture

Part No :: FH12-15S-0.5SVA(54)

Manufacturer: Hirose

Description: CONN FFC VERT 15POS 0.50MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH12-15S-0.5SVA(54) PDF

Availability: 4033 pieces

Unit Price: ~~$1.36000~~

Current price of FH12-15S-0.5SVA(54) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH12-15S-0.5SVA(54) Specifications

Type	Description
Series:	FH12
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	15
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.142" (3.60mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Polyamide (PA), Nylon
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
