FH28-40(20)SB-1SH(05)

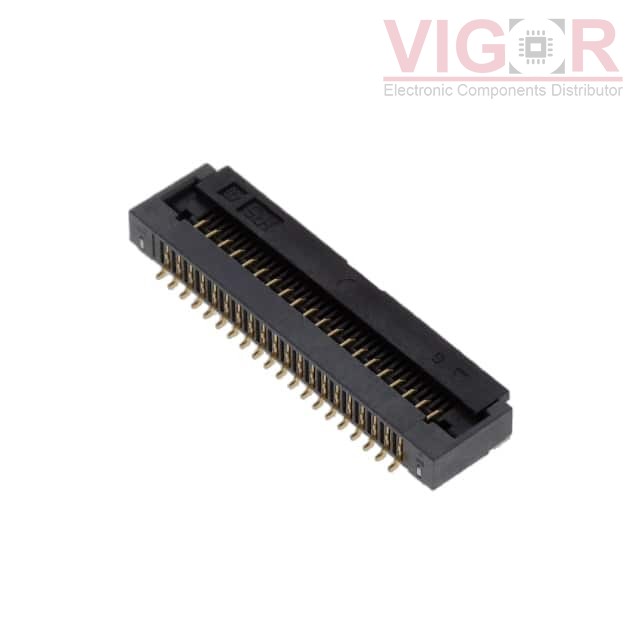

Image is for reference,
please contact us to get the real picture

Part No :: FH28-40(20)SB-1SH(05)

Manufacturer: Hirose

Description: CONN FPC BOTTOM 40POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH28-40(20)SB-1SH(05) PDF

Availability: 1189 pieces

Unit Price: ~~$1.57000~~

Current price of FH28-40(20)SB-1SH(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH28-40(20)SB-1SH(05) Specifications

Type	Description
Series:	FH28
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	40 (20 Loaded)
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.100" (2.54mm)
Locking Feature:	Rotary Lock
Cable End Type:	Tabbed
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	-
Voltage Rating:	-
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
