F536-1A7H1-11018

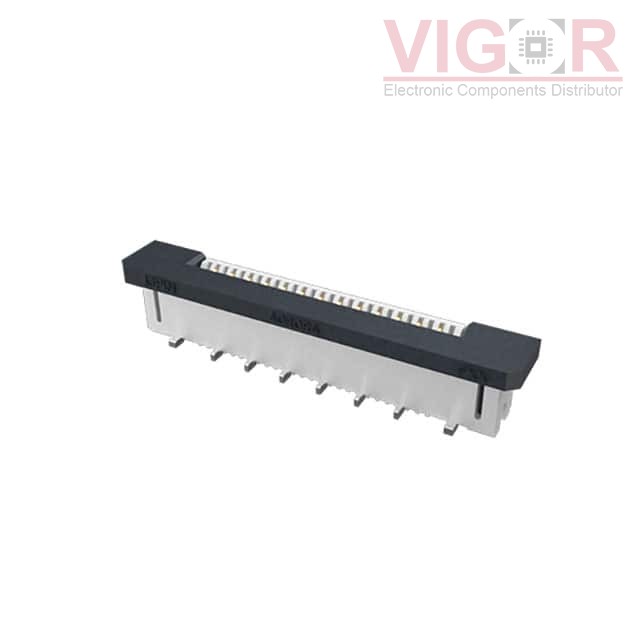

Image is for reference,
please contact us to get the real picture

Part No :: F536-1A7H1-11018

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: FLEX CONNECTOR, 1.00MM PITCH, HE

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: F536-1A7H1-11018 PDF

Availability: 1143 pieces

Unit Price: ~~$0.56000~~

Current price of F536-1A7H1-11018 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

F536-1A7H1-11018 Specifications

Type	Description
Series:	Aorora F51W
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	18
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.33mm
Height Above Board:	0.167" (4.25mm)
Locking Feature:	Slide Lock
Cable End Type:	Notched
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
