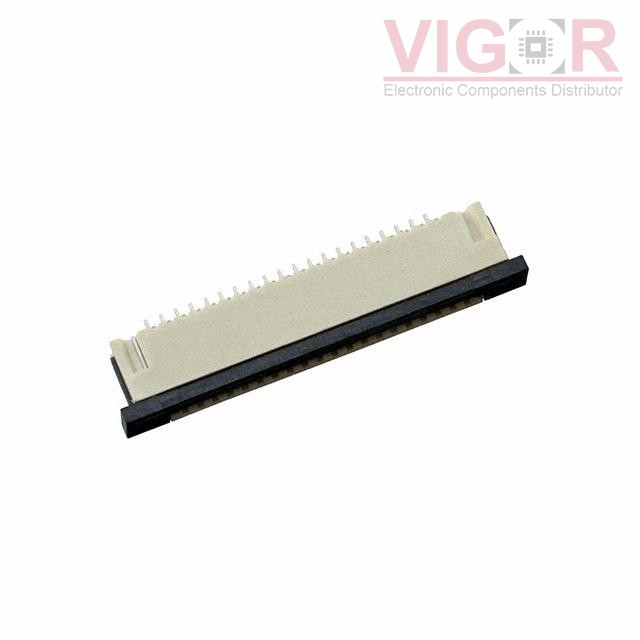

ZF1-20-01-T-WT

Part No :: ZF1-20-01-T-WT

Manufacturer: Samtec, Inc.

VIGOR # :: 3262581

Description: ZERO INSERTION FORCE 1MM ASSY

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: ZF1-20-01-T-WT PDF

Current price of ZF1-20-01-T-WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZF1-20-01-T-WT Specifications

Type	Description
Series:	ZF1
Package:	Tube
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	20
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.118" (3.00mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-2

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1159

Shipped from

HK warehouse

Expected Shipping Date

Dec 23 - Dec 27 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$1.14000	$1.14
21	$1.00455	$21.09555
42	$0.94543	$39.70806
63	$0.90602	$57.07926
105	$0.86663	$90.99615
252	$0.78786	$198.54072
504	$0.70905	$357.3612
1008	$0.63027	$635.31216
2520	$0.57118	$1439.3736
