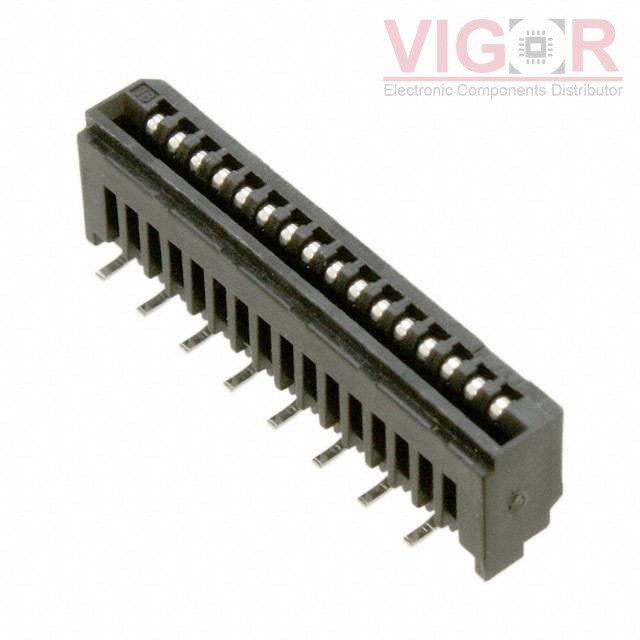

16FMN-BMTTR-A-TB(LF)(SN)

Part No :: 16FMN-BMTTR-A-TB(LF)(SN)

Manufacturer: JST

VIGOR # :: 3262685

Description: CONN FFC VERT 16POS 1.00MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 16FMN-BMTTR-A-TB(LF)(SN) PDF

Current price of 16FMN-BMTTR-A-TB(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

16FMN-BMTTR-A-TB(LF)(SN) Specifications

Type	Description
Series:	FMN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	16
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.201" (5.10mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyamide (PA6T), Nylon 6T
Actuator Material:	-
Features:	Low Insertion Force (LIF)
Voltage Rating:	50V
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0
