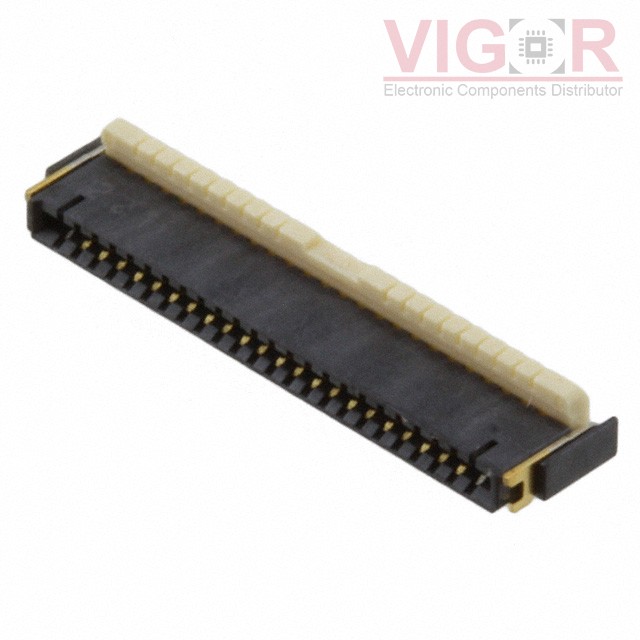

AYF532265

Image is for reference,
please contact us to get the real picture

Part No :: AYF532265

Manufacturer: Panasonic

Description: CONN FPC 22POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: AYF532265 PDF

Availability: 0 pieces

Unit Price: ~~$0.82460~~

Current price of AYF532265 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AYF532265 Specifications

Type	Description
Series:	Y5BW
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	22
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Notched
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	-
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
