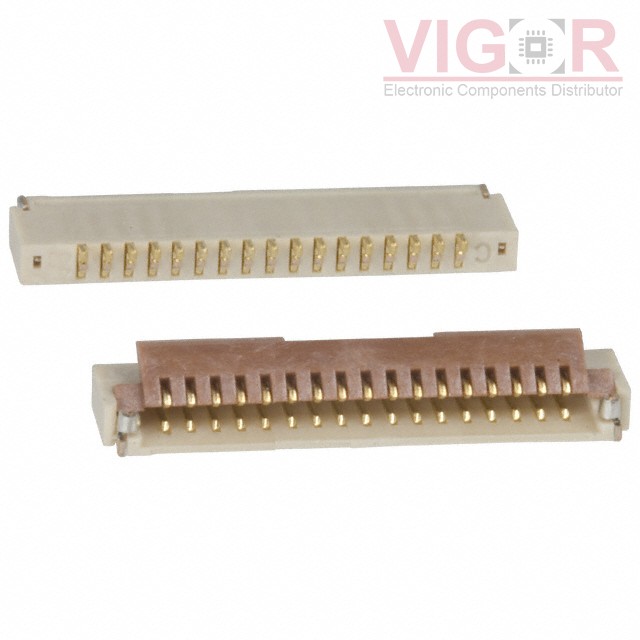

FH19C-17S-0.5SH(10)

Part No :: FH19C-17S-0.5SH(10)

Manufacturer: Hirose

VIGOR # :: 3263113

Description: CONN FFC BOTTOM 17POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH19C-17S-0.5SH(10) PDF

Current price of FH19C-17S-0.5SH(10) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH19C-17S-0.5SH(10) Specifications

Type	Description
Series:	FH19C
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	17
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.035" (0.88mm)
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
