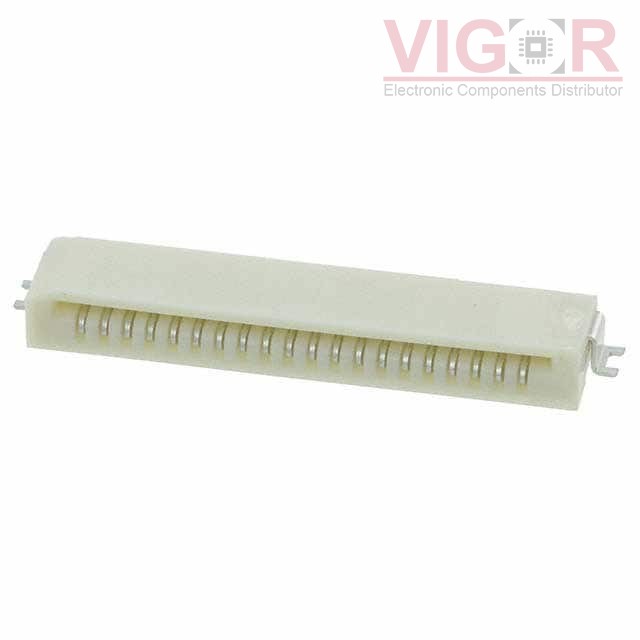

Image is for reference,
please contact us to get the real picture

Part No :

0528522070

Manufacturer
Woodhead - Molex
Description
CONN FFC BOTTOM 20POS 1.00MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
DataSheet
0528522070 PDF
Availability
5739 pieces
Unit Price
$1.34000

Current price of 0528522070 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0528522070 Specifications
Type Description
Series:Easy-On 52852
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:20
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.122" (3.10mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyphenylene Sulfide (PPS)
Actuator Material:-
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-20°C ~ 80°C
Material Flammability Rating:UL94 V-0
