AYF533035A

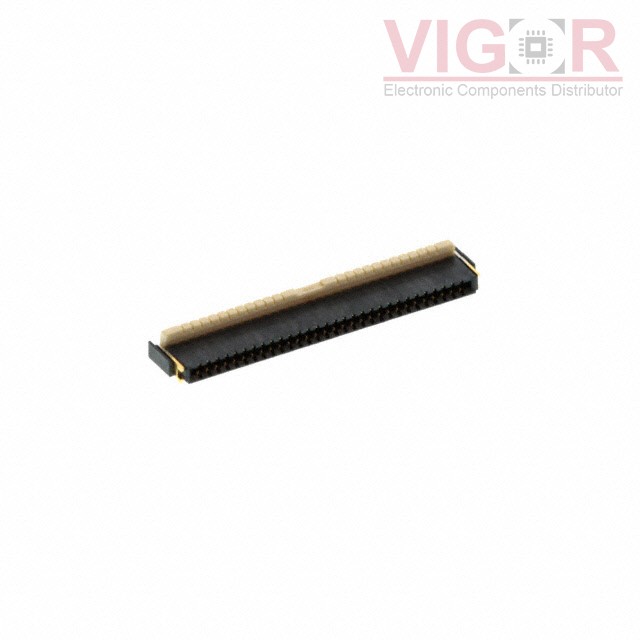

Product image
Product thumb
Part No :

AYF533035A

Manufacturer
Panasonic
VIGOR # :

3263317

Description
CONN FFC FPC 30POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
DataSheet
AYF533035A PDF
Country of origin
Confirming
Date code
TBC
ads
AYF533035A Specifications
Type Description
Series:Y5B
Package:Strip
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:30
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Liquid Crystal Polymer (LCP)
Features:-
Voltage Rating:50V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: Available on Request ?
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.2400 $2.24
10 $2.0295 $20.30
25 $1.9053 $47.63
50 $1.8224 $91.12
100 $1.7396 $173.96
250 $1.5739 $393.48
500 $1.4497 $724.83
1000 $1.2426 $1 242.57
2500 $1.1597 $2 899.32

Current price of AYF533035A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
