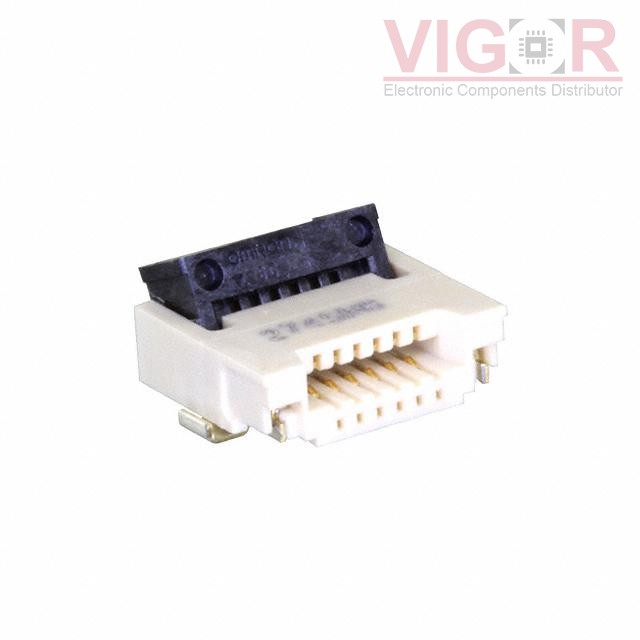

XF3M-0615-1B

Part No :: XF3M-0615-1B

Manufacturer: Omron Electronics Components

VIGOR # :: 3263395

Description: CONN FFC FPC 6POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: XF3M-0615-1B PDF

Current price of XF3M-0615-1B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XF3M-0615-1B Specifications

Type	Description
Series:	XF3M
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	6
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Rotary Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
