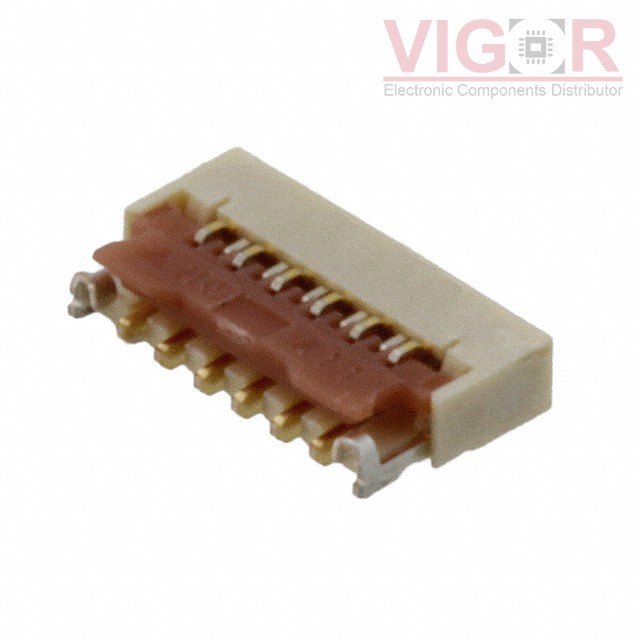

FH36W-11S-0.3SHW(50)

FH36W-11S-0.3SHW(50)

Image is for reference,
please contact us to get the real picture

Part No :

FH36W-11S-0.3SHW(50)

Manufacturer
Hirose
Description
CONN FPC BOTTOM 11POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 24 - Oct 28 2025
DataSheet
FH36W-11S-0.3SHW(50) PDF
Availability
0 pieces
Unit Price
$0.77140

Current price of FH36W-11S-0.3SHW(50) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH36W-11S-0.3SHW(50) Specifications
Type Description
Series:FH36
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:11
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Polyamide (PA), Nylon
Features:Zero Insertion Force (ZIF)
Voltage Rating:30V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 HB
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0527451897

0527451897

CONN FFC TOP 18POS 0.50MM R/A
HOT 5051102291

5051102291

CONN FFC/FPC BOTTOM 22P .5MM R/A

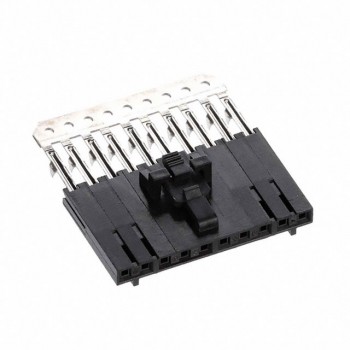

HOT 0015388100
