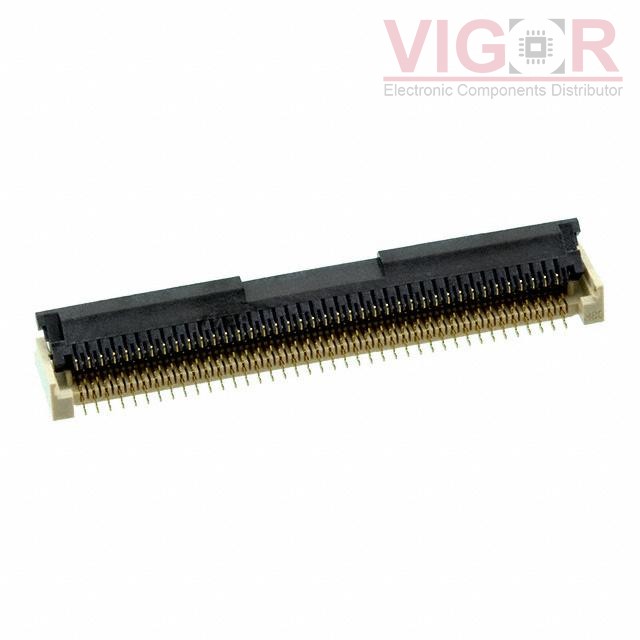

FH30M-80S-0.4SHW(98)

Part No :: FH30M-80S-0.4SHW(98)

Manufacturer: Hirose

VIGOR # :: 3263868

Description: CONN FPC BOTTOM 80POS 0.40MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH30M-80S-0.4SHW(98) PDF

Current price of FH30M-80S-0.4SHW(98) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH30M-80S-0.4SHW(98) Specifications

Type	Description
Series:	FH30
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	80
Pitch:	0.016" (0.40mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.118" (3.00mm)
Locking Feature:	Rotary Lock
Cable End Type:	Tabbed
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	-
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
