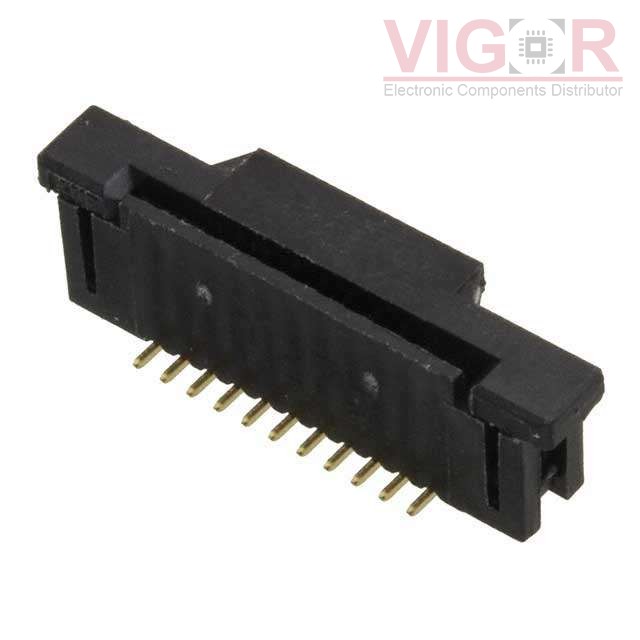

1-1734248-1

Part No :: 1-1734248-1

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3263947

Description: CONN FPC VERT 11POS 1.00MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 1-1734248-1 PDF

Current price of 1-1734248-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-1734248-1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	11
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.217" (5.50mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Polyamide (PA9T), Nylon 9T
Actuator Material:	Polyamide (PA9T), Nylon 9T
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	125V
Operating Temperature:	-20°C ~ 85°C
Material Flammability Rating:	UL94 V-0
