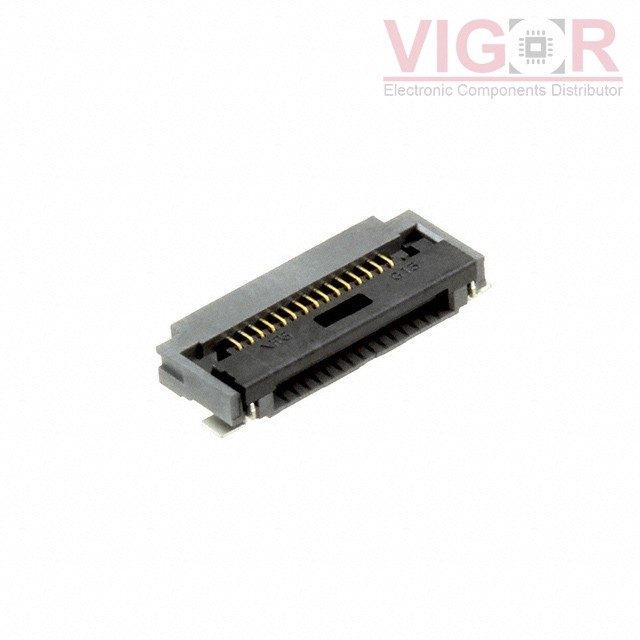

FH52E-15S-0.5SH(99)

Part No :: FH52E-15S-0.5SH(99)

Manufacturer: Hirose

VIGOR # :: 3264003

Description: CONN FFC 15POS .5MM

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH52E-15S-0.5SH(99) PDF

Current price of FH52E-15S-0.5SH(99) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH52E-15S-0.5SH(99) Specifications

Type	Description
Series:	FH52E
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	15
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Tabbed
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
