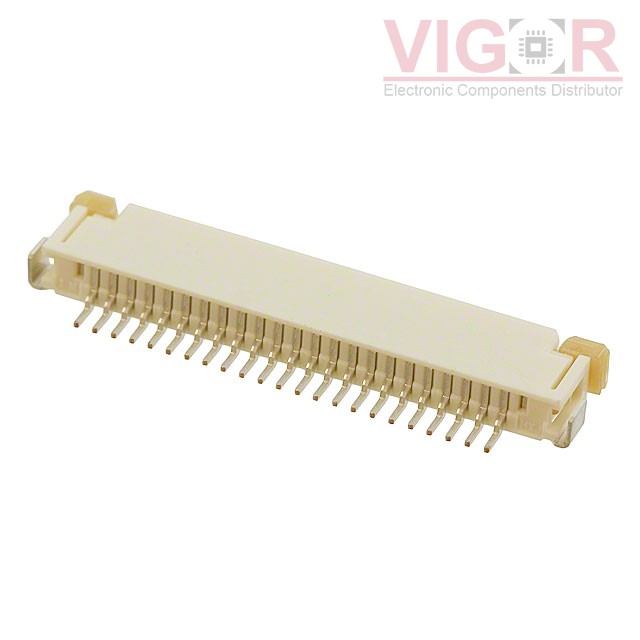

Image is for reference,
please contact us to get the real picture

Part No :

0522072385

Manufacturer
Woodhead - Molex
Description
CONN FFC FPC TOP 23POS 1MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 11 - Oct 15 2025
DataSheet
0522072385 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 0522072385 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0522072385 Specifications
Type Description
Series:Easy-On 52207
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:23
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0545501894

0545501894

CONN FFC TOP 18POS 0.50MM R/A
HOT FH12-22S-0.5SV(55)

FH12-22S-0.5SV(55)

CONN FFC VERT 22POS 0.50MM SMD

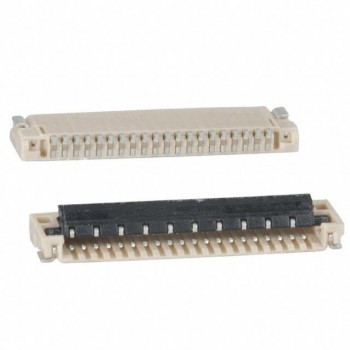

HOT 0514412093
