0545501894

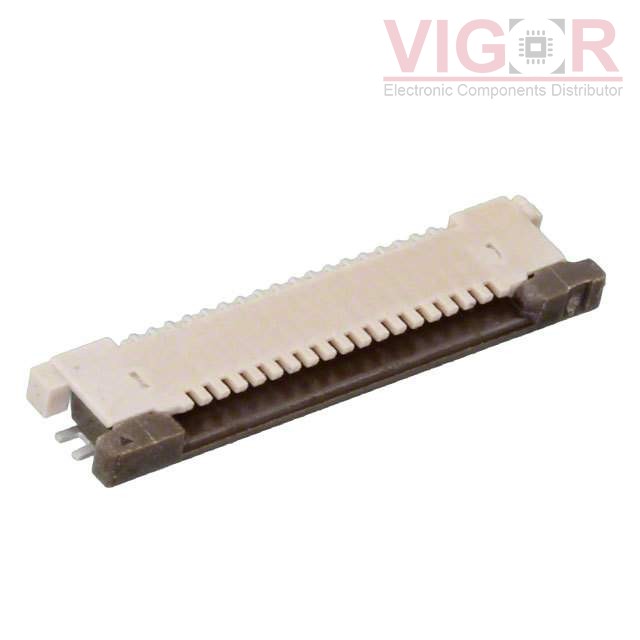

Image is for reference,
please contact us to get the real picture

Part No :: 0545501894

Manufacturer: Woodhead - Molex

Description: CONN FFC TOP 18POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Oct 13 - Oct 17 2025

DataSheet: 0545501894 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 0545501894 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0545501894 Specifications

Type	Description
Series:	Easy-On 54550
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	18
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.047" (1.20mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin Bismuth
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-20°C ~ 85°C
Material Flammability Rating:	UL94 V-0
