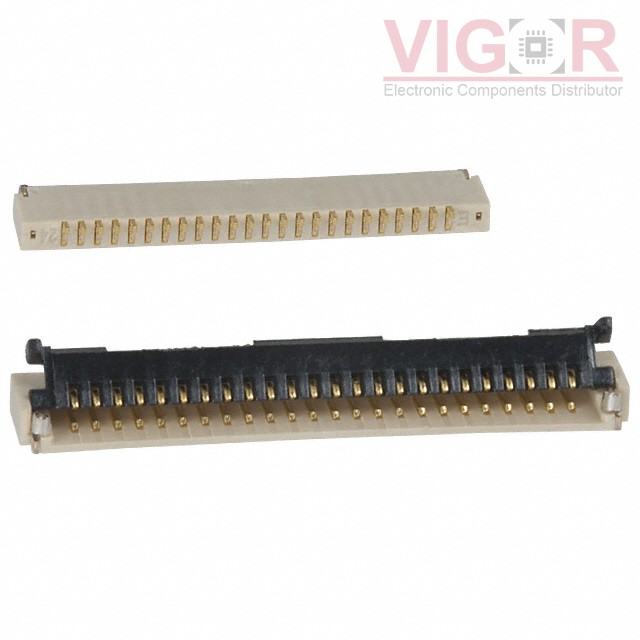

FH19S-24S-0.5SH(05)

Part No :: FH19S-24S-0.5SH(05)

Manufacturer: Hirose

VIGOR # :: 4709955

Description: CONN FFC BOTTOM 24POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH19S-24S-0.5SH(05) PDF

Country of origin: -

Date code: -

FH19S-24S-0.5SH(05) Specifications

Type	Description
Series:	FH19S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	24
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.035" (0.88mm)
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 80°C
Material Flammability Rating:	UL94 V-0
