09628160301

Part No :: 09628160301

Manufacturer: HARTING

VIGOR # :: 3217469

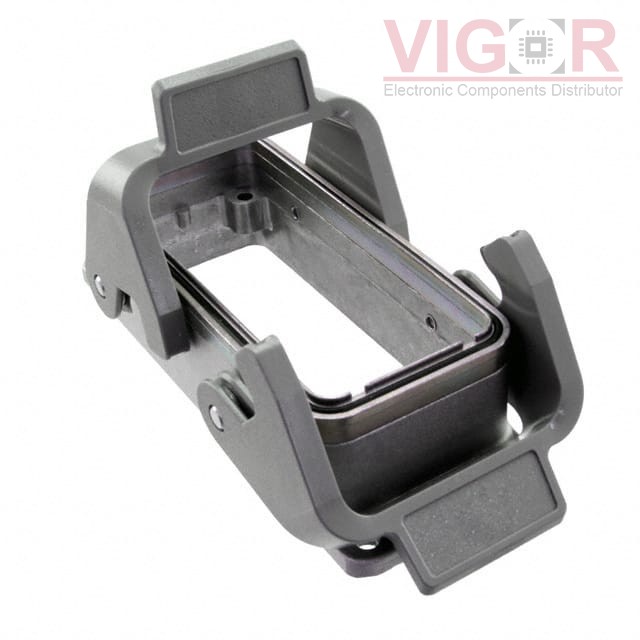

Description: CONN BASE BOTTOM ENTRY SZ16B

Catalog: Heavy Duty Connectors - Housings, Hoods, Bases

DataSheet: 09628160301 PDF

Country of origin: -

Date code: -

09628160301 Specifications

Type	Description
Series:	Han® EMC
Package:	Bulk
Part Status:	Active
Connector Type:	Base - Panel Mount
Style:	Bottom Entry
Size:	16B
Lock Location:	Locking Clip (2) on Base Bottom
Thread Size:	-
Size / Dimension:	4.449" L x 1.693" W x 1.134" H (113.00mm x 43.00mm x 28.80mm)
Housing Color:	-
Features:	-
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Housing Material:	Aluminum, Die Cast
Housing Finish:	EMC Coating
Operating Temperature:	-40°C ~ 125°C
