09200101541

09200101541

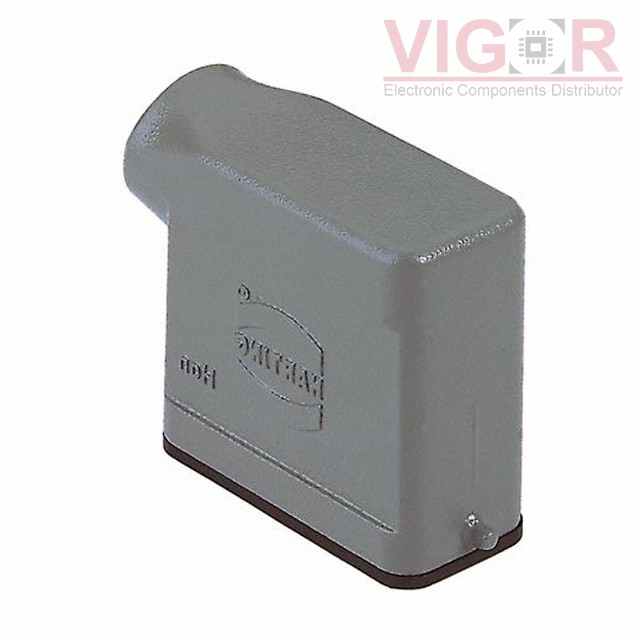

Image is for reference,
please contact us to get the real picture

Part No :

09200101541

Manufacturer
HARTING
Description
CONN HOOD SIDE ENTRY SZ10A PG16
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Oct 04 - Oct 08 2025
DataSheet
09200101541 PDF
Availability
11 pieces
Unit Price
$20.33000

Current price of 09200101541 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200101541 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Hood
Style:Side Entry
Size:10A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:PG16
Size / Dimension:2.469" L x 1.161" W x 2.409" H (62.70mm x 29.50mm x 61.20mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
