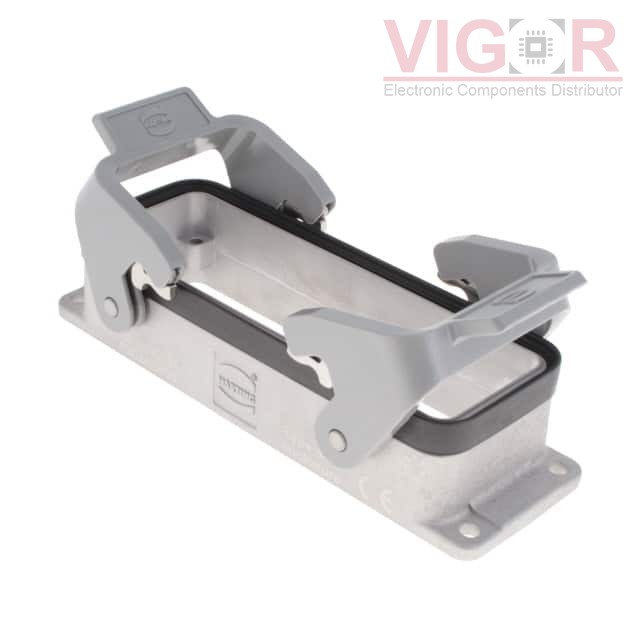

09628242301

Part No :: 09628242301

Manufacturer: HARTING

VIGOR # :: 3220004

Description: 24B EMC BULKHEAD HOUSING, DOUBLE

Catalog: Heavy Duty Connectors - Housings, Hoods, Bases

DataSheet: 09628242301 PDF

Country of origin: -

Date code: -

09628242301 Specifications

Type	Description
Series:	Han®
Package:	Bulk
Part Status:	Active
Connector Type:	Base - Panel Mount
Style:	Bottom Entry
Size:	24B
Lock Location:	Locking Clip (2) on Base Bottom
Thread Size:	-
Size / Dimension:	5.512" L x 1.732" W x 1.177" H (140.00mm x 44.00mm x 29.90mm)
Housing Color:	-
Features:	-
Ingress Protection:	IP66 - Dust Tight, Water Resistant
Housing Material:	Aluminum, Die Cast
Housing Finish:	-
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$37.85~~	~~$37.85~~

Current price of 09628242301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
