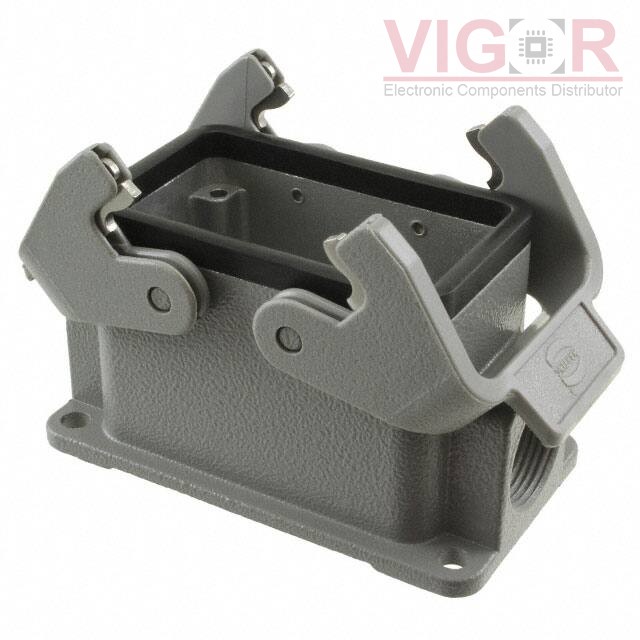

09300101271

Part No :: 09300101271

Manufacturer: HARTING

VIGOR # :: 3220027

Description: CONN BASE SIDE ENTRY SZ10B PG16

Catalog: Heavy Duty Connectors - Housings, Hoods, Bases

DataSheet: 09300101271 PDF

Country of origin: -

Date code: -

09300101271 Specifications

Type	Description
Series:	Han® B
Package:	Bulk
Part Status:	Active
Connector Type:	Base - Box Mount
Style:	Side Entry
Size:	10B
Lock Location:	Locking Clip (2) on Base Bottom
Thread Size:	PG16
Size / Dimension:	3.701" L x 2.047" W x 2.118" H (94.00mm x 52.00mm x 53.80mm)
Housing Color:	Gray
Features:	Feed Through
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Housing Material:	Aluminum, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 10

Shipped from

HK warehouse

Expected Shipping Date

Feb 08 - Feb 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$38.76~~	~~$38.76~~
10	~~$34.99~~	~~$349.87~~
25	~~$33.52~~	~~$838.00~~
50	~~$31.42~~	~~$1 571.25~~
100	~~$30.38~~	~~$3 037.75~~
250	~~$28.70~~	~~$7 175.38~~

Current price of 09300101271 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

1081430000

CONN BASE SIDE ENTRY SZ8 PG36

0936010681

3A STD NYL HOOD 2PGS T/E M20 BK

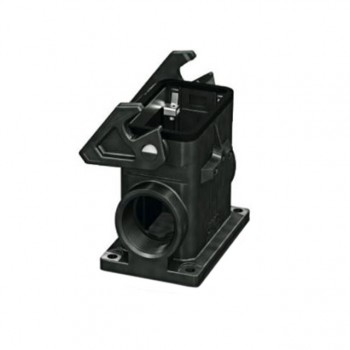

1421277
