09300160256

09300160256

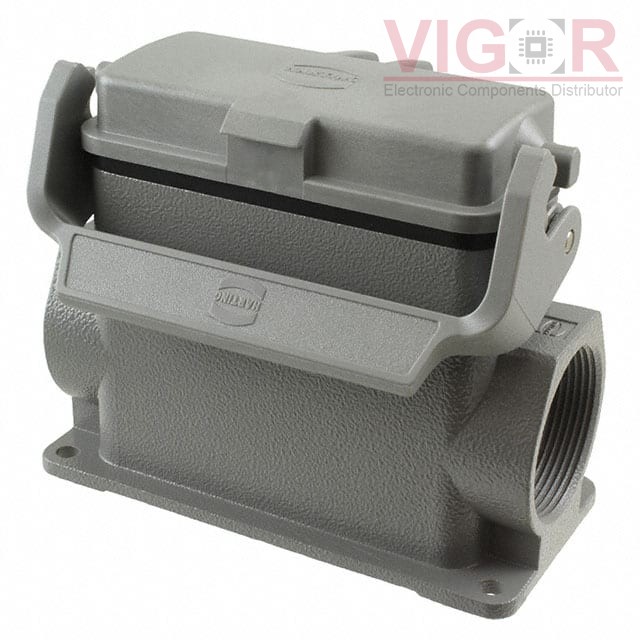

Image is for reference,
please contact us to get the real picture

Part No :

09300160256

Manufacturer
HARTING
Description
CONN BASE SIDE ENTRY SZ16B PG29
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Oct 08 - Oct 12 2025
DataSheet
09300160256 PDF
Availability
1 pieces
Unit Price
$90.07000

Current price of 09300160256 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09300160256 Specifications
Type Description
Series:Han® B
Package:Bulk
Part Status:Active
Connector Type:Base - Box Mount
Style:Side Entry
Size:16B
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:PG29
Size / Dimension:4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm)
Housing Color:Gray
Features:Cover
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1460111

1460111

CONN HOOD SIDE ENTRY SZB16 PG21
HOT T1910160140-009

T1910160140-009

T1910160140-009

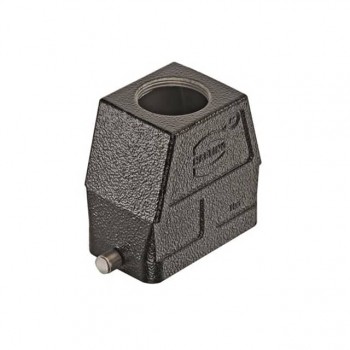

HOT 19370060445
