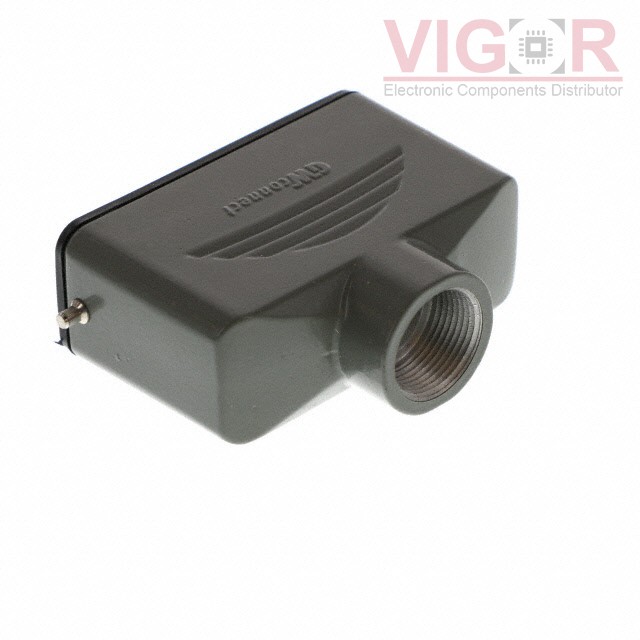

0936012171

Part No :: 0936012171

Manufacturer: Woodhead - Molex

VIGOR # :: 3220419

Description: CONN HOOD TOP ENTRY SZ16A PG16

Catalog: Heavy Duty Connectors - Housings, Hoods, Bases

DataSheet: 0936012171 PDF

Country of origin: -

Date code: -

0936012171 Specifications

Type	Description
Series:	GWconnect
Package:	Bulk
Part Status:	Active
Connector Type:	Hood
Style:	Top Entry
Size:	16A
Lock Location:	Locking Clip (1) on Base Bottom
Thread Size:	PG16
Size / Dimension:	3.130" L x 1.165" W x 2.480" H (79.50mm x 29.60mm x 63.00mm)
Housing Color:	-
Features:	-
Ingress Protection:	IP66 - Dust Tight, Water Resistant
Housing Material:	Aluminum Alloy, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 10

Shipped from

HK warehouse

Expected Shipping Date

Jun 08 - Jun 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.2000~~	~~$15.20~~
10	~~$13.9415~~	~~$139.41~~
25	~~$13.6246~~	~~$340.61~~
50	~~$12.6741~~	~~$633.70~~
100	~~$12.0404~~	~~$1 204.04~~
250	~~$11.0898~~	~~$2 772.45~~
500	~~$10.4561~~	~~$5 228.04~~
1000	~~$9.6956~~	~~$9 695.65~~

Current price of 0936012171 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
