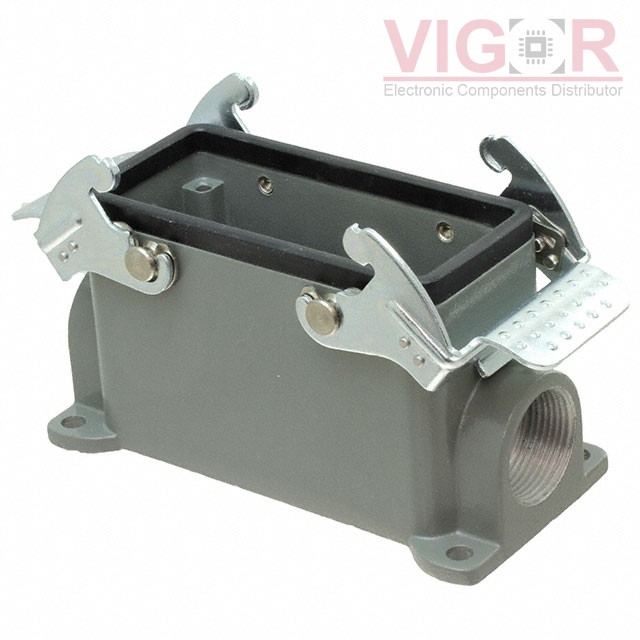

0936012561

Part No :: 0936012561

Manufacturer: Woodhead - Molex

VIGOR # :: 3220616

Description: CONN BASE SIDE ENTRY SZ16B M25

Catalog: Heavy Duty Connectors - Housings, Hoods, Bases

DataSheet: 0936012561 PDF

Country of origin: -

Date code: -

0936012561 Specifications

Type	Description
Series:	GWconnect
Package:	Bulk
Part Status:	Active
Connector Type:	Base - Box Mount
Style:	Side Entry
Size:	16B
Lock Location:	Locking Clip (2) on Base Bottom
Thread Size:	M25
Size / Dimension:	4.606" L x 2.244" W x 2.480" H (117.00mm x 57.00mm x 63.00mm)
Housing Color:	Gray
Features:	-
Ingress Protection:	IP66 - Dust Tight, Water Resistant
Housing Material:	Aluminum Alloy, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5

Shipped from

HK warehouse

Expected Shipping Date

Feb 07 - Feb 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$34.72~~	~~$34.72~~
10	~~$31.67~~	~~$316.69~~
25	~~$30.48~~	~~$762.07~~
50	~~$28.79~~	~~$1 439.47~~
100	~~$27.94~~	~~$2 794.27~~
250	~~$26.59~~	~~$6 646.98~~

Current price of 0936012561 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

C14610R0246078

CONN HOOD TOP ENTRY SZE24 M40

1081190000

CONN BASE SIDE ENTRY SZ3 M25

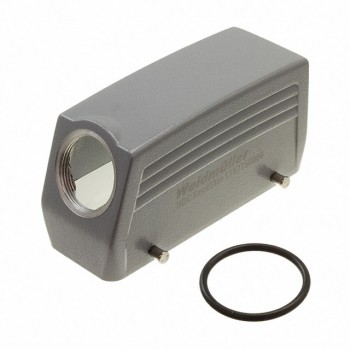

1787750000
