1690422

Part No :: 1690422

Manufacturer: Phoenix Contact

VIGOR # :: 4705618

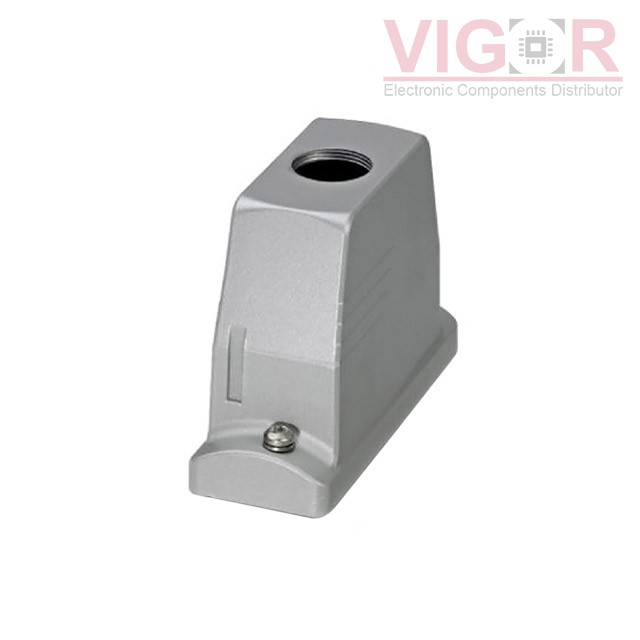

Description: CONN HOOD TOP ENTRY SZB24 M40

Catalog: Heavy Duty Connectors - Housings, Hoods, Bases

DataSheet: 1690422 PDF

Country of origin: -

Date code: -

1690422 Specifications

Type	Description
Series:	HEAVYCON-ADVANCE® EMV
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Hood
Style:	Top Entry
Size:	B24
Lock Location:	Screw Locks on Hood
Thread Size:	M40
Size / Dimension:	5.984" L x 2.244" W x 3.937" H (152.00mm x 57.00mm x 100.00mm)
Housing Color:	Silver
Features:	-
Ingress Protection:	IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material:	Aluminum, Die Cast
Housing Finish:	EMC Coating
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 01 - May 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 1690422 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
