JXR0-0005NL

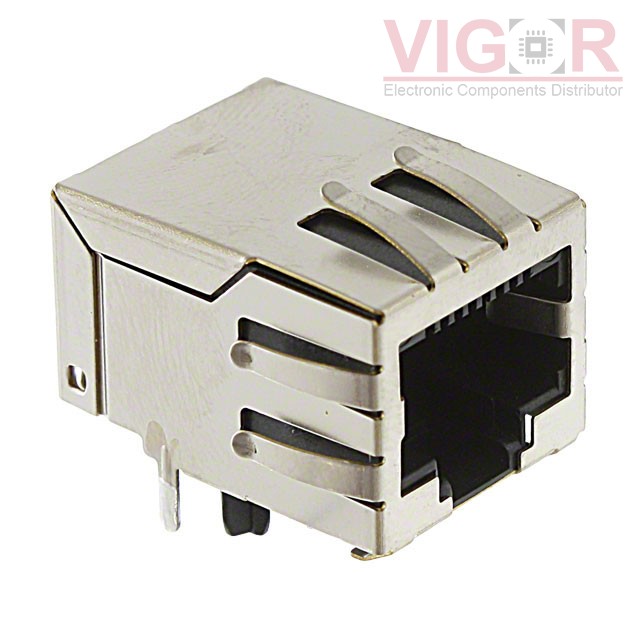

Image is for reference,
please contact us to get the real picture

Part No :: JXR0-0005NL

Manufacturer: PulseLarsen Antenna

Description: CONN JACK 1PORT 100 BASE-TX PCB

Catalog: Modular Connectors - Jacks With Magnetics

DataSheet: JXR0-0005NL PDF

Availability: 0 pieces

Unit Price: ~~$8.39000~~

Current price of JXR0-0005NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JXR0-0005NL Specifications

Type	Description
Series:	PULSEJACK™ JXR0
Package:	Tray
Part Status:	Active
Connector Type:	RJ45
Number of Ports:	1
Number of Rows:	1
Applications:	10/100 Base-TX, AutoMDIX
Mounting Type:	Through Hole
Orientation:	90° Angle (Right)
Termination:	Solder
Height Above Board:	0.545" (13.84mm)
LED Color:	Does Not Contain LED
Number of Cores per Jack:	4
Shielding:	Shielded
Features:	Board Guide
Tab Direction:	Down
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 15 - Nov 19 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$8.39000	$8.39
10	$8.05598	$80.5598
30	$7.37645	$221.2935
60	$7.03637	$422.1822
120	$6.69644	$803.5728
270	$6.01662	$1624.4874
510	$5.67670	$2895.117
1020	$4.99686	$5096.7972
