JX20-0254NL

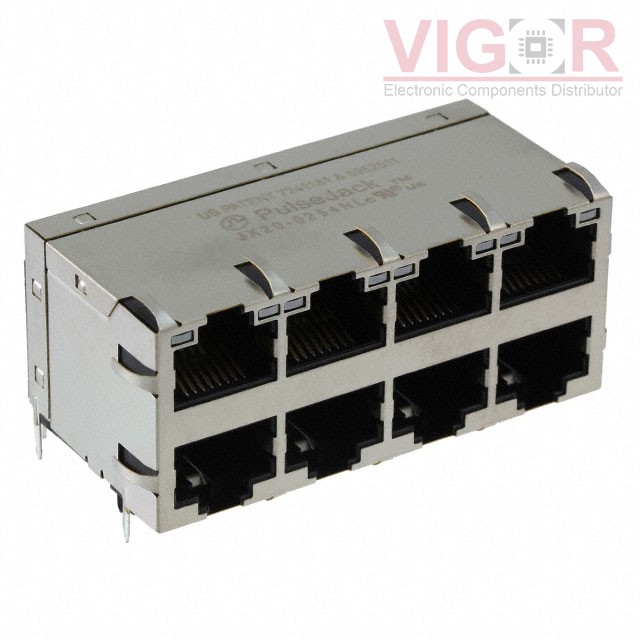

Image is for reference,
please contact us to get the real picture

Part No :: JX20-0254NL

Manufacturer: PulseLarsen Antenna

Description: CONN JACK 8PORT 100 BASE-TX PCB

Catalog: Modular Connectors - Jacks With Magnetics

DataSheet: JX20-0254NL PDF

Availability: 0 pieces

Unit Price: ~~$35.98396~~

Current price of JX20-0254NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JX20-0254NL Specifications

Type	Description
Series:	PULSEJACK™ JX2
Package:	Tray
Part Status:	Active
Connector Type:	RJ45
Number of Ports:	8
Number of Rows:	2
Applications:	10/100 Base-TX, AutoMDIX
Mounting Type:	Through Hole
Orientation:	90° Angle (Right)
Termination:	Solder
Height Above Board:	1.005" (25.53mm)
LED Color:	Green, Orange - Green, Orange
Number of Cores per Jack:	4
Shielding:	Shielded, EMI Finger
Features:	Board Guide
Tab Direction:	Up and Down
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
