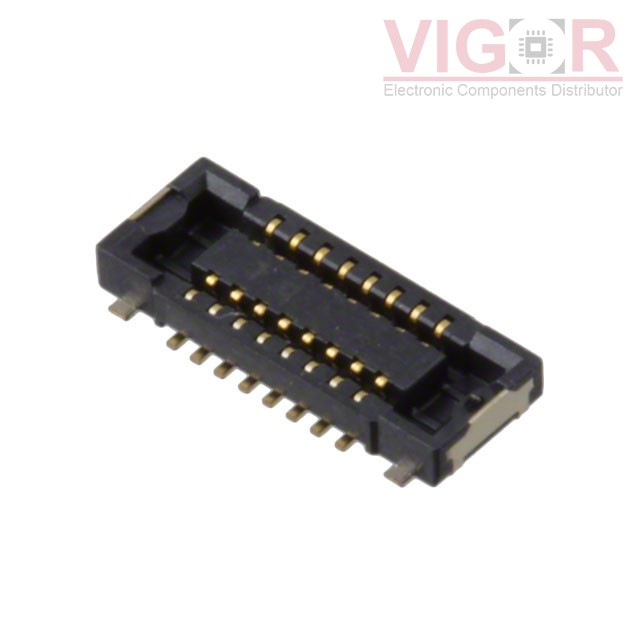

AXE516127

Part No :: AXE516127

Manufacturer: Panasonic

VIGOR # :: 3004802

Description: CONN SOCKET 16POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXE516127 PDF

Current price of AXE516127 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXE516127 Specifications

Type	Description
Series:	A4S
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	16
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.8mm, 1mm
Height Above Board:	0.030" (0.75mm)
