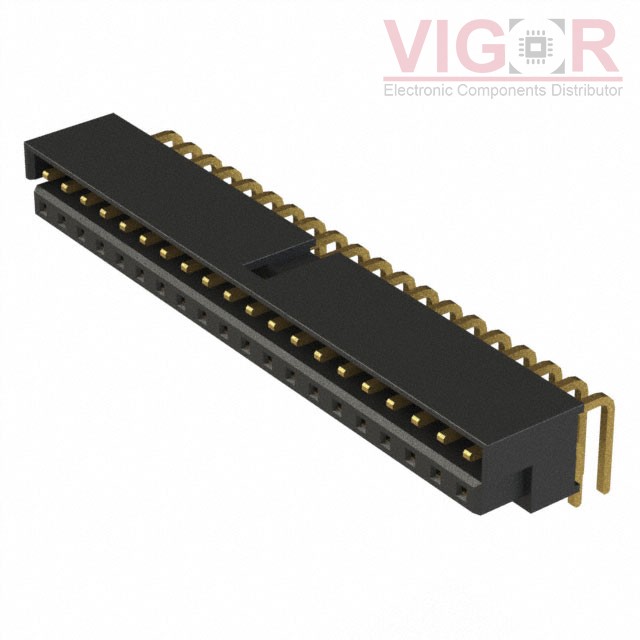

LS2-120-01-L-D-RA2

Part No :: LS2-120-01-L-D-RA2

Manufacturer: Samtec, Inc.

VIGOR # :: 3004843

Description: CONN SELF-MATE 40POS R/A GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LS2-120-01-L-D-RA2 PDF

Current price of LS2-120-01-L-D-RA2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS2-120-01-L-D-RA2 Specifications

Type	Description
Series:	LS2
Package:	Tube
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	40
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Mounting Type:	Through Hole, Right Angle
Features:	Latch Holder
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	-
Height Above Board:	0.208" (5.28mm)

Please confirm the specifications of the products when ordering.
