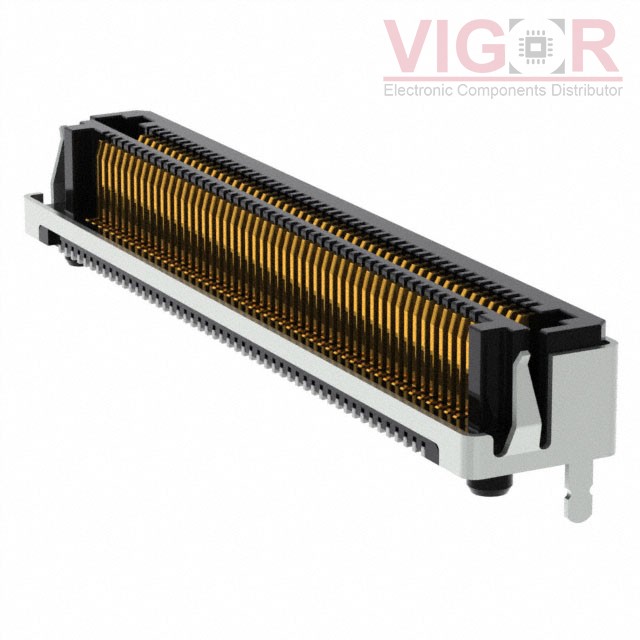

LSHM-150-02.5-L-DV-A-S-TR

Part No :: LSHM-150-02.5-L-DV-A-S-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3005122

Description: CONN SELF-MATE 100POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSHM-150-02.5-L-DV-A-S-TR PDF

Current price of LSHM-150-02.5-L-DV-A-S-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSHM-150-02.5-L-DV-A-S-TR Specifications

Type	Description
Series:	Razor Beam™ LSHM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	100
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Shielded
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	5mm, 5.5mm, 6.5mm, 8.5mm
Height Above Board:	0.156" (3.96mm)

Please confirm the specifications of the products when ordering.
