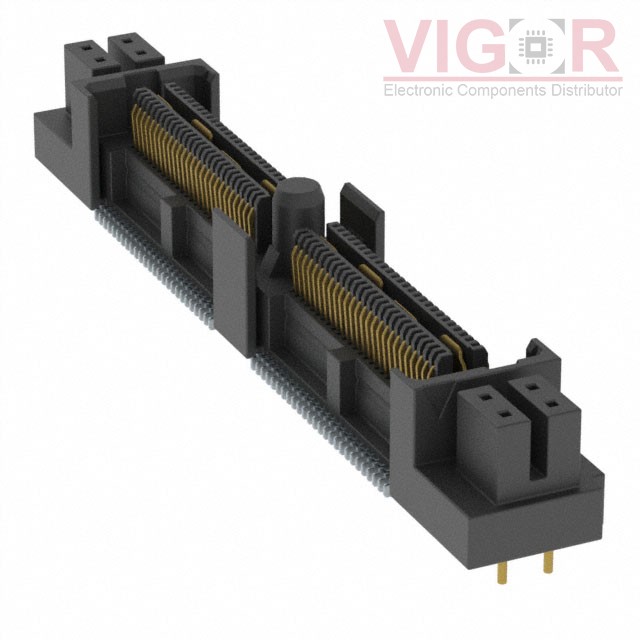

QFS-052-04.25-L-D-PC4-P

Part No :: QFS-052-04.25-L-D-PC4-P

Manufacturer: Samtec, Inc.

VIGOR # :: 3005202

Description: CONN RCPT 104POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QFS-052-04.25-L-D-PC4-P PDF

Current price of QFS-052-04.25-L-D-PC4-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QFS-052-04.25-L-D-PC4-P Specifications

Type	Description
Series:	Power Q2™ QFS
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	112 (104 + 8 Power)
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Ground Bus (Plane), Pick and Place, Power Pins (8)
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	10mm, 11mm, 14mm
Height Above Board:	0.278" (7.06mm)
