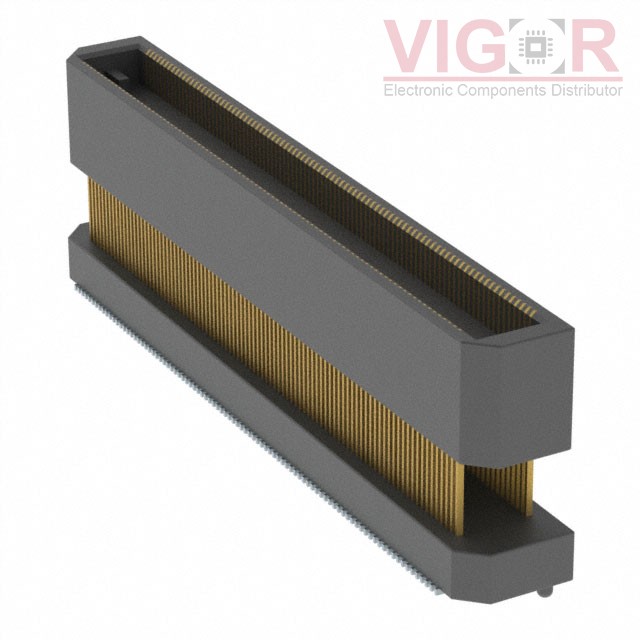

BTH-090-04-F-D-A-K

Part No :: BTH-090-04-F-D-A-K

Manufacturer: Samtec, Inc.

VIGOR # :: 3005220

Description: CONN HDR 180POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-090-04-F-D-A-K PDF

Current price of BTH-090-04-F-D-A-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTH-090-04-F-D-A-K Specifications

Type	Description
Series:	BTH
Package:	Tube
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	180
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	16mm
Height Above Board:	0.600" (15.24mm)
