FX23-80S-0.5SH

Part No :: FX23-80S-0.5SH

Manufacturer: Hirose

VIGOR # :: 3005235

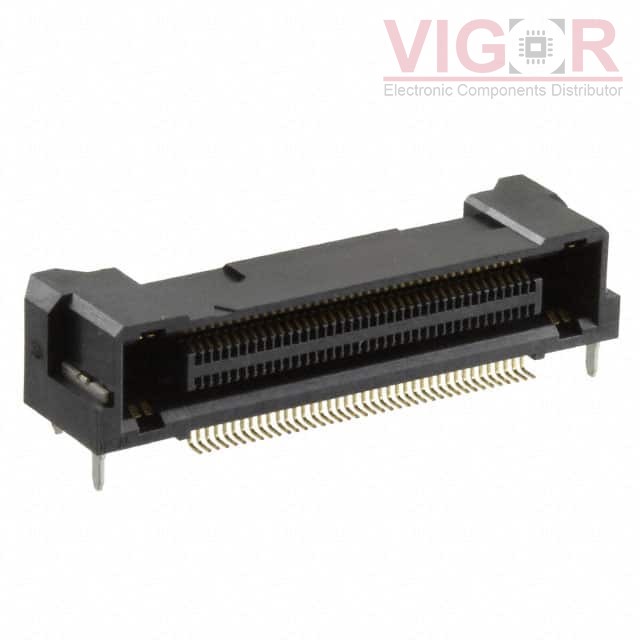

Description: CONN RCPT 80POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: FX23-80S-0.5SH PDF

Country of origin: -

Date code: -

FX23-80S-0.5SH Specifications

Type	Description
Series:	FunctionMax™ FX23
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	84 (80 + 4 Power)
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	-
Height Above Board:	0.287" (7.30mm)
