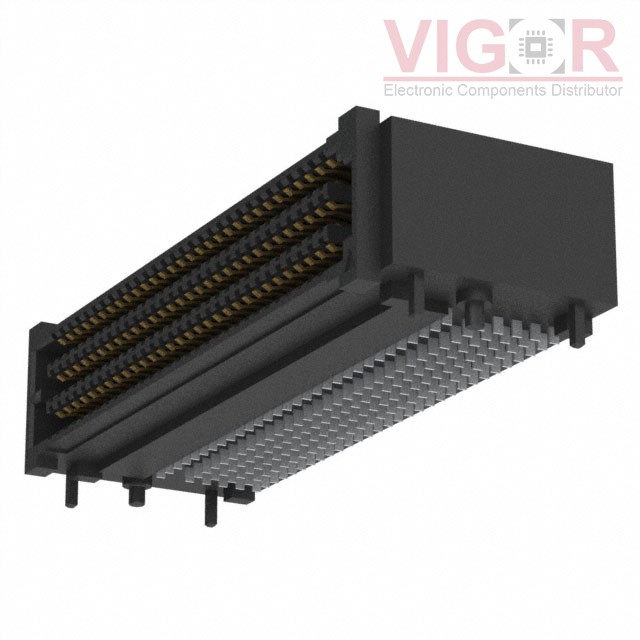

SEAF-30-01-L-06-2-RA-K-TR

Part No :: SEAF-30-01-L-06-2-RA-K-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3005298

Description: CONN HD ARRAY RCPT 180P R/A SMD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: SEAF-30-01-L-06-2-RA-K-TR PDF

Current price of SEAF-30-01-L-06-2-RA-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SEAF-30-01-L-06-2-RA-K-TR Specifications

Type	Description
Series:	SEARAY™ SEAF
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	High Density Array, Female
Number of Positions:	180
Pitch:	0.050" (1.27mm)
Number of Rows:	6
Mounting Type:	Surface Mount, Right Angle
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	-
Height Above Board:	0.411" (10.45mm)
